UGREEN 4K 30Hz Wireless HDMI Extender, Transmitter & Receiver Set with Up to 50m Range
UGREEN CM506 wireless HDMI extender set: 4K 30Hz, up to 50 m, with HDMI, VGA, USB-C and audio outputs on the receiver. Send your picture to a screen across the room or building without trailing a long HDMI cable. Genuine UGREEN quality.
Product Description Click to view
UGREEN 4K 30Hz Wireless HDMI Extender, Transmitter & Receiver Set with Up to 50m Range
Product Description
The UGREEN CM506 is a wireless HDMI extender set, a transmitter and a receiver, for 4K 30Hz video over up to 50 metres in open space. It sends a laptop, set-top box or console picture to a projector or TV across a room or a hall without running an HDMI cable through the walls.
HDMI cables lose strength over long runs, and a cable stretched across a room is untidy and a trip hazard. The UGREEN CM506 wireless HDMI extender carries the signal to the display without a cable between the two ends, with 4K 30Hz video listed. It is made for meeting rooms, churches, shops and installers who need the screen far from the source.
Key Features and Benefits
- Transmitter and receiver: A transmitter at the source and a receiver at the display replace the long cable.
- Up to 50m range: Listed range of up to 50m under suitable conditions; walls and interference can reduce it.
- Video quality: Listed for 4K at 30Hz video.
- Dual-band wireless: listed for both 2.4GHz and 5GHz operation.
- Receiver with several outputs: HDMI, VGA, USB-C and 3.5mm audio, so it can feed a modern TV or an older VGA projector.
- One-to-one link: one transmitter pairs with one receiver, which keeps set-up simple for a fixed presentation room.
Made for Life in Nairobi and Across Kenya
Share a presentation to a wall-mounted TV on the other side of a Nairobi boardroom, project song lyrics at church from a laptop at the back, or run a digital menu in a shop without cables on the floor.
Buying and Setup Tips
- Place the transmitter and receiver within the listed range and with as few obstructions as possible.
- Check the resolution you need, and that the source and display both support it.
- Plan power for both ends where the device requires it.
- Both units need power, so plan a socket or USB power source at each end.
Who It's Perfect For
- Meeting rooms and training venues
- Churches and event halls
- Shops and restaurants with display screens
- AV installers
Specifications at a Glance
- Brand: UGREEN
- Model: CM506
- Product type: Wireless HDMI extender
- Length: 50m
- Video resolution: 4K at 30Hz
- Maximum Resolution: 1920 × 1080 at 60Hz
- Backward Resolution Support: Compatible lower resolutions such as 720p depend on the source and display
- Wireless Band: 5GHz wireless transmission
- Maximum Transmission Distance: Up to 50 metres / 164 feet in an open, unobstructed line-of-sight environment
- Connection Type: One transmitter to one receiver

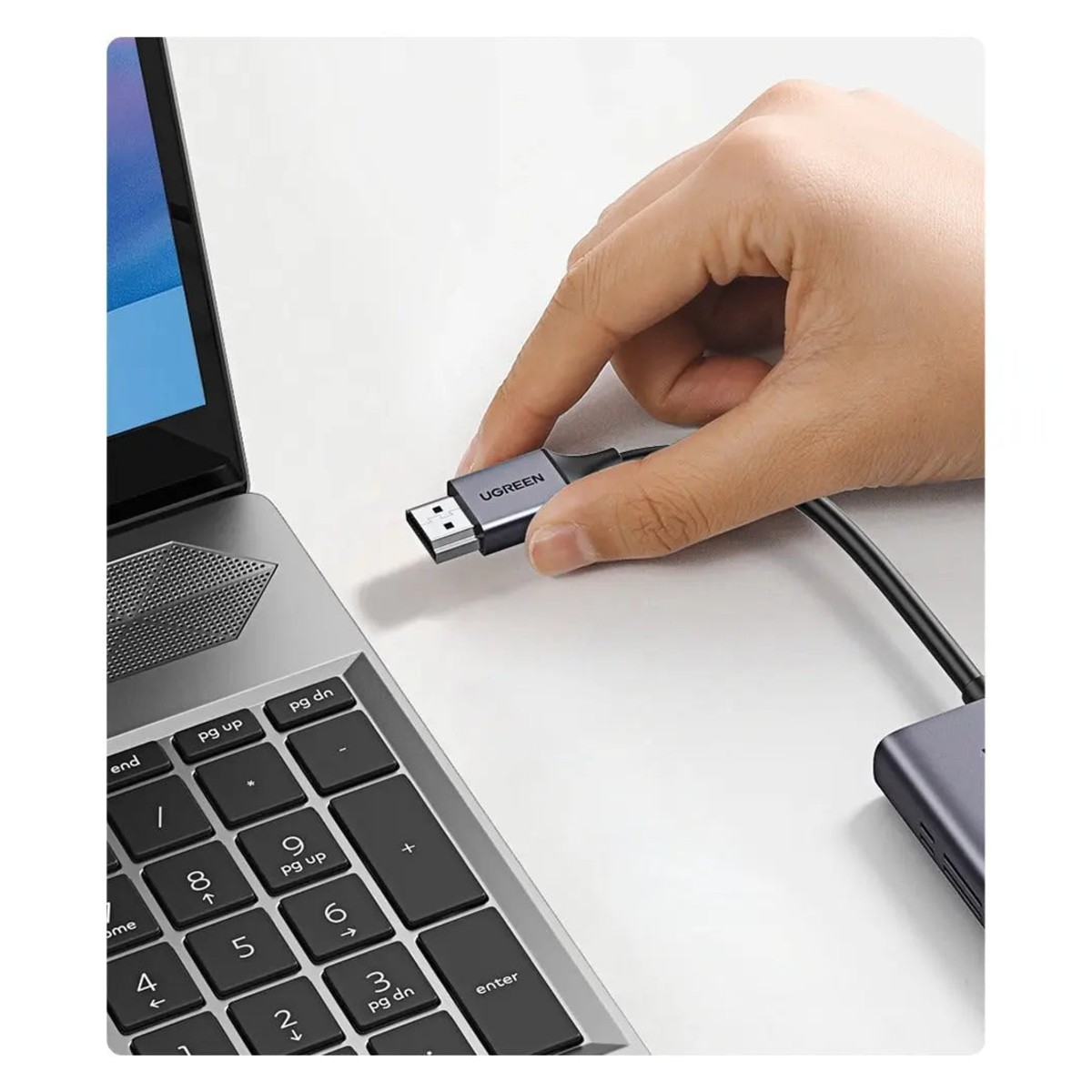

- Transmitter Input: Fixed HDMI male connection for the source device
- Transmitter Power: USB-C, recommended 5V/1A stable supply
- Receiver HDMI Output: Up to 1080p@60Hz
- Set: Transmitter and receiver
- Range: up to 50 m, open space
- Video: 4K 30Hz
- Receiver outputs: HDMI, VGA, USB-C, 3.5mm audio
- Power: external 5V supply for the units
- Reference: UGREEN Wireless HDMI 4K 30HZ Transmitter and Receiver upto 50M - CM506
Frequently Asked Questions
How far will it reach?
The listed range is on this page. Real range depends on the room, walls and interference.
Can one source feed more than one display?
Check the number of receivers supported before buying.
How many screens can it feed?
One receiver per transmitter, so it is a one-to-one link.
Can it feed a VGA projector?
The receiver has a VGA output as well as HDMI.
Genuine UGREEN quality, ready for long-distance display connections (model CM506). A dependable choice for customers in Nairobi and across Kenya.
